| Place of Origin: | CHINA |
| Brand Name: | REX |
| Minimum Order Quantity: | ONE SET |
|---|---|
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 15 WORK DAYS |
| Payment Terms: | T/T |
| Operating Temperature: | -5~40℃ | Operating Relative Humidity: | 30 - 95% |
|---|---|---|---|
| Temperature Range For Water Feeding: | 10~30°C (setting 25℃ In The Factory) |
Dampening Solution Circulator and ink Temperature Control system for Komori KBA Harris Roland Akiyama Mitsubishi GOSS printing machine
Ink Temperature Controller Reco100
| Defined mechanical, electrical and fluid interfaces | 380v 50Hz 3PH |
| Qualified Quality system | ISO9001:2008 GB/T 19001-2008 |
| Environment | |
| Operating temperature | +10~40℃ |
| Temperature for transport | Up to 65 °C |
| Operating relative humidity (not condensing) | 30 – 95% |
| Geographic height with air cooled refrigeration unit | Under 3000m |
| System Specification | |
| Temperature range of the dampening solution | 25℃ |
| Cooling Capacity | - |
| Refrigerant | R22, R134a, R407c, R404a |
| Flow Rate | - |
| Water quality fresh water | 8dH |
| Water temperature fresh water | Max. 25°C |
| Dimension (mm) | ≤L1350×D850×H1730 |
| Net Weight(KG) | 280KG |
| Gross Weight(KG) | 300KG |
Ink Roller Temperature Control System Reco150
| Items | Value we are offering |
| completely pre-assembled, wired and tested | Power Supply; Water Supply |
| mechanical, electricaland fluid interfaces | 380v50Hz 3PH |
| Operating Voltage | 361V~415V 50Hz 3ph |
| Qualified Quality system | ISO9001:2008 GB/T 19001-2008 |
| Operating temperature | -5~40℃ |
| Operating relative humidity | 30 - 95% |
| Temperature range for water feeding | 10~30°C (setting 25℃ in the factory) |
| Cooling capacity | 10748kcal/h R134a |
| Flow rate | ≥6T/H |
| Water quality fresh water | 8-14°dH |
| Water temperature fresh water | Max. 25°C |
| Dimension | L1550×D850×H1700 |
| Net Weight | 320Kg |
| Gross Weight | 350Kg |
The ink tempersture control system and Dampening Solution Circulator could be chosen as followings:

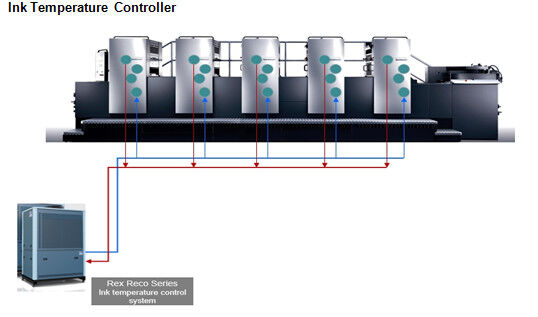

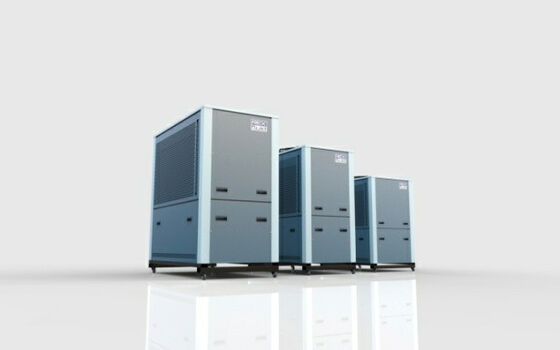

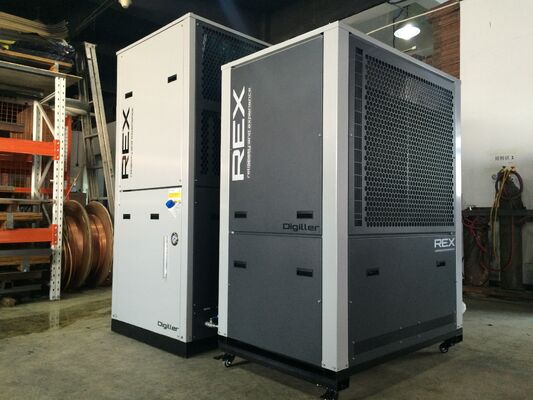

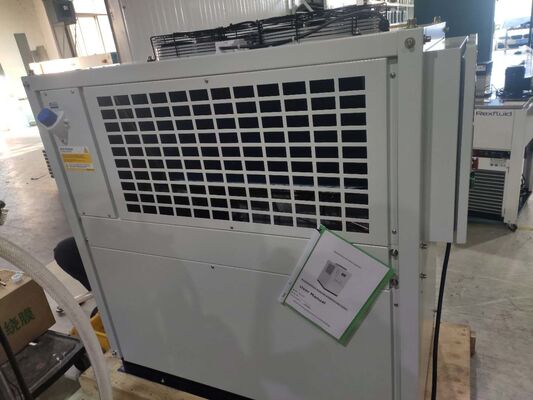

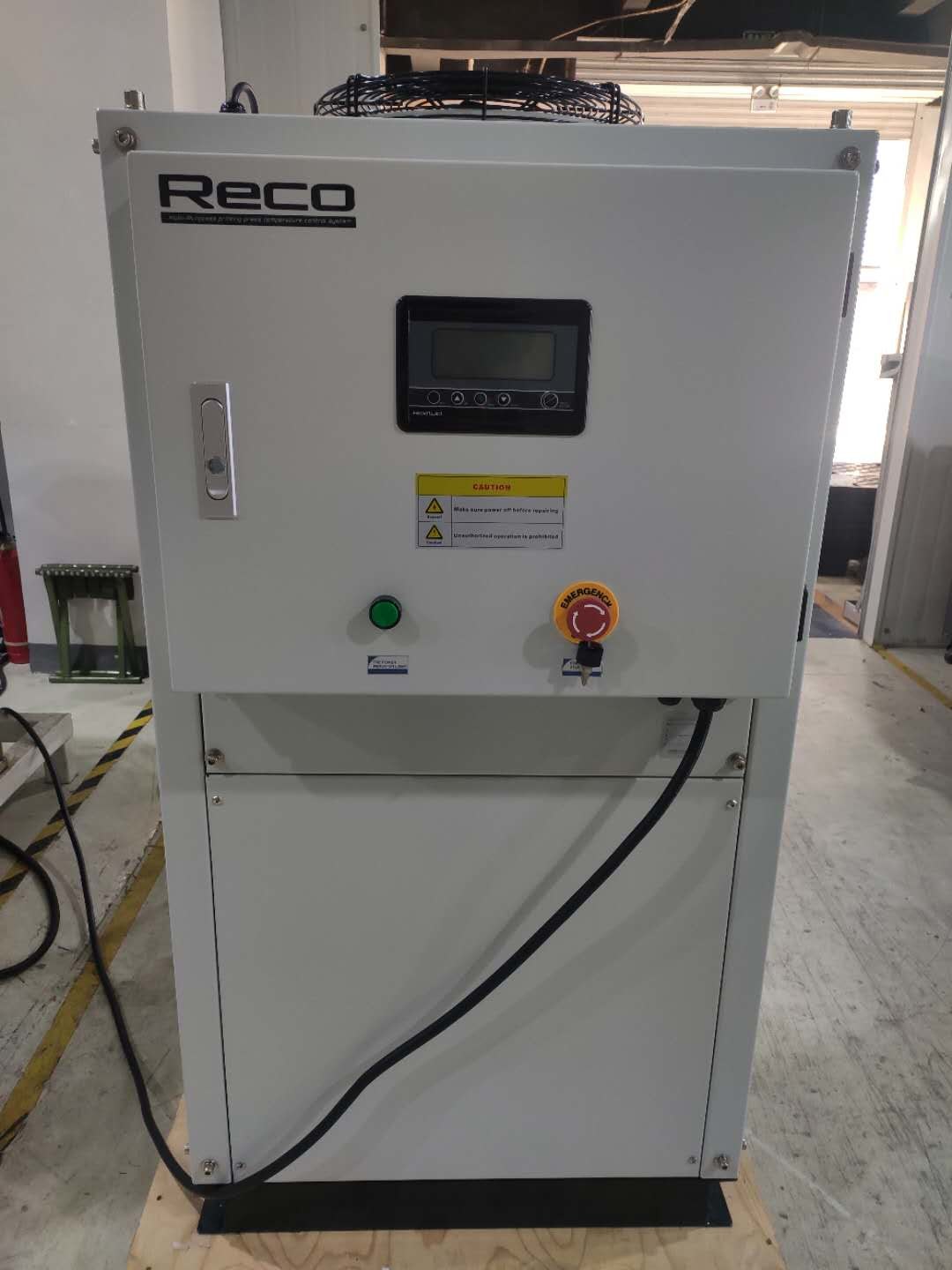

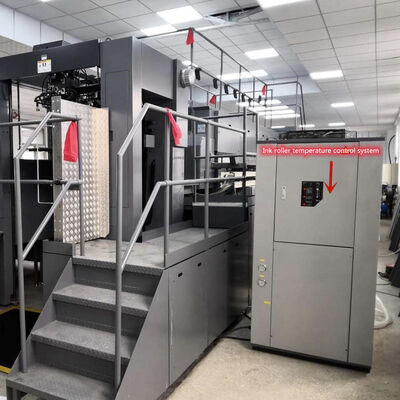

The photo of the ink tempersture control system :
