| Place of Origin: | China |
| Brand Name: | REX |
| Model Number: | Digiller 5 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Operating Temperature: | -5~40℃ | Temperature Range Of The Dampening Solution: | 5~15 °C ( Setting 7°C Before Delivery) |
|---|---|---|---|
| Cooling Capacity: | ≥50Kw |
Ink temperature control system, Temperature control system Digiller 5, Bidwasher for Digital printing press HP Indigo 10000/20000 series
| Temperature Control system Digiller 5 for Digital Printing Press HP Indigo10000/20000 Series | |
| Items | Value we are offering |
| Digiller5 Digital press temperature control system | |
| General requirement | |
| completely pre-assembled, wired and tested | Finished machine; Connect the water pipes and connect to the power supply at the customer's factory. |
| Defined mechanical, electrical and fluid interfaces |
Power supply:380v50Hz 3PH Standard Output flow/Backflow |
| Required Industrial standard | JB/T 11123-2010 |
| Qualified Quality system | ISO9001:2008 GB/T 19001-2008 |
| Degree of protection electricalConnections | IP54 |
| Environment | |
| Operating temperature | -5~40℃ |
| Temperature for transport | Up to 65 °C |
| Operating relative humidity (notcondensing) | 30- 95% |
| Geographic height with air cooledrefrigeration unit | ≤ 3000m |
| System Specification | |
| Temperature range of the dampening solution | 5~15 °C ( Setting 7°C before delivery) |
| Cooling capacity | ≥50Kw |
| Water quality fresh water | 8-14°dH |
| Water temperature fresh water | Max. 25°C |
| Dimension (mm) | L2000×W950×H2000 |
| Integrated dampening solution tank | ≥400liters |
| * Filter system | |
| Inlet fresh water | Standard |

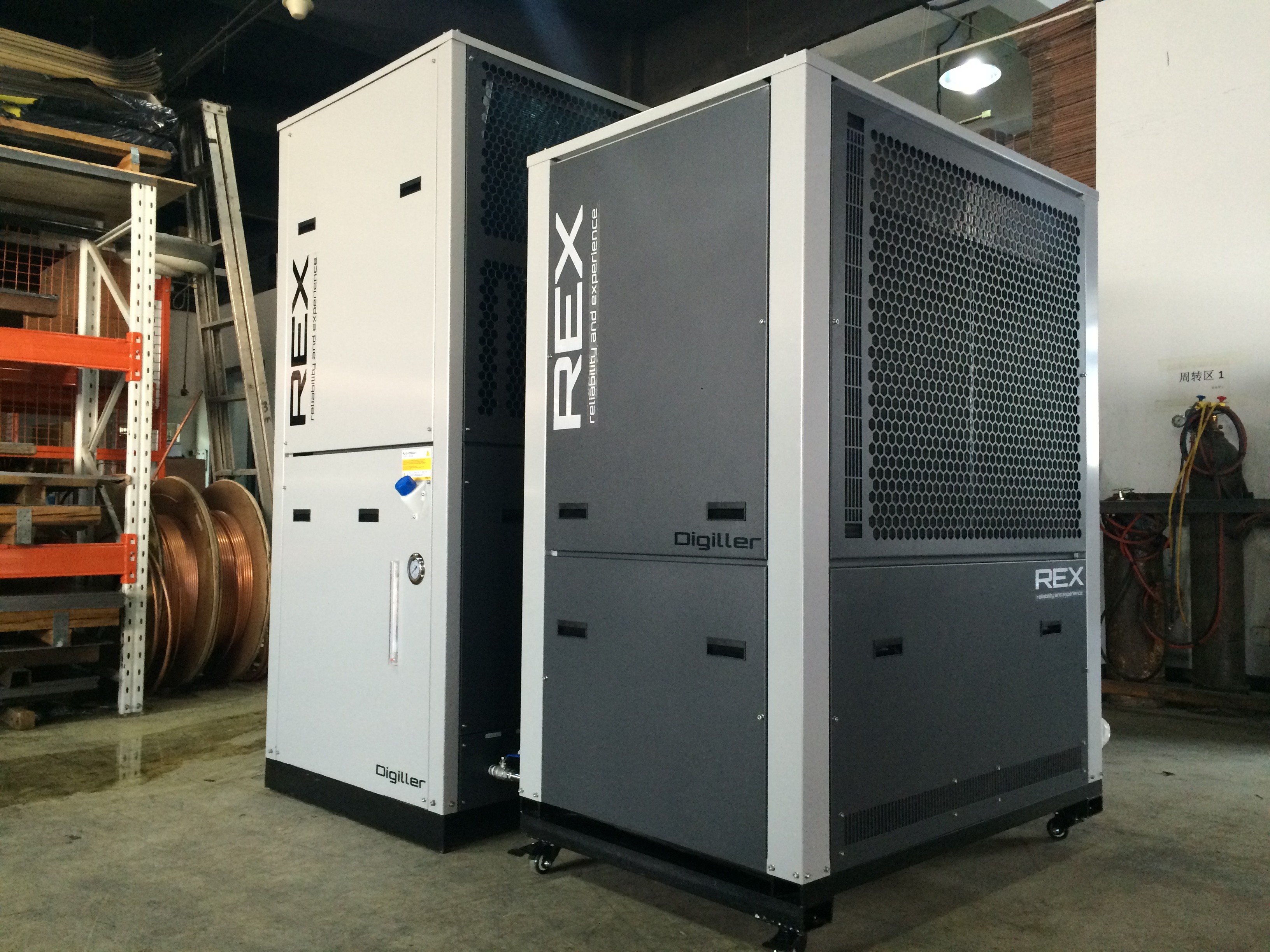

Picture of the temperature system control system for Digital printing press HP Indigo 10000/20000 series

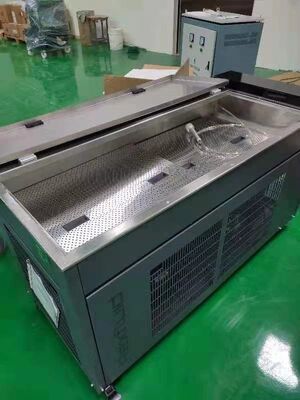

Picture of Bidwasher for Digital printing press HP Indigo 7500, 10000/20000
