| Place of Origin: | CHINA |
| Model Number: | XMY-FQ900 |
| Minimum Order Quantity: | 1 SET |
|---|---|

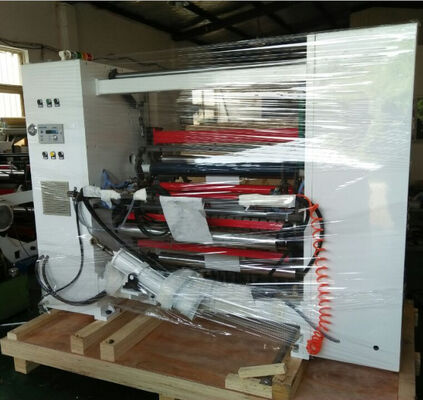

| Packaging Details: | WOODEN CASE |
| Delivery Time: | 30 WORK DAYS |
| Payment Terms: | T/T |

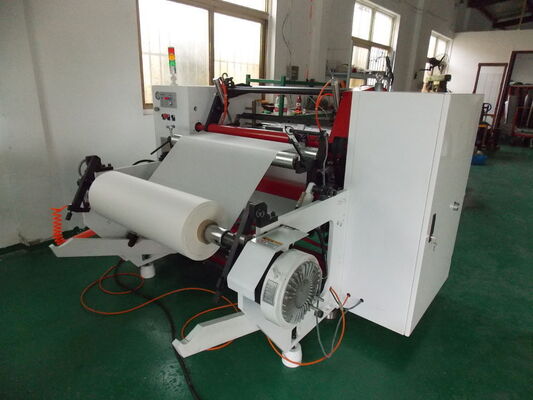

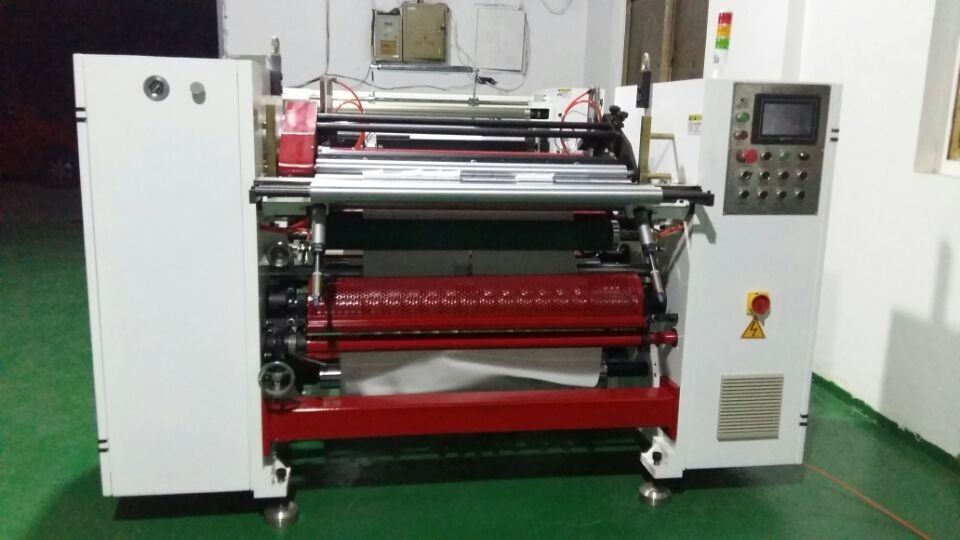

TILL ROLL CONVERTING SLITTING AND REWINDING MACHINE with 12,14,18,26mm rewind shaft for ATM PAPER
| MODEL: | SUITABLE FOR SLITTING / REWINDING REGISTER PAPERS | ||
| ITEM. | DESCRIPTION. | QTY | AMOUNT. |
| ＊ SPECIFICATIONS | |||
| ◎ ROLLER WIDTH | 900mm | ||
| ◎ UNWIND DIAMETER | 1100mm | ||
| ◎ SLITTING WIDTH | 30mm –900mm | ||
| ◎ REWIND CORE | 1/2” - 3” (12mm –76mm) | ||
| ◎ REWIND DIAMETER | 200mm | ||
| ◎ MACHINE SPEED | 250M/MIN | ||
| ◎ POWER SOURCE | 380V 50HZ 3PHASE OR AS REQUESTS | ||
| ◎ AIR SOURCE | 5 KG (PREPARED BY USER) | ||
| ＊ UNWIND SECTION | |||
| ◎ UNWIND BASE | SEPARATED SHAFT TYPE OF MOVABLE UNWIND BASE | 1 SET | |
| ◎ WEB GUIDING | EDGE POSITION CONTROLLER (E.P.C) | 1 SET | |
| ◎ UNWIND SHAFT | 3" AIR SHAFT | 1 PCE | |
| ◎ UNWIND PICK-UP LIFT | pneumatic cylinder lifter (FOR 800 KGS) | 1 SET | |
| ◎ UNWIND BRAKE | AIR BRAKE 40 KGS | 1 SET | |
| ◎ BRAKE SYSTEM | DANCER ROLLER CONTROL SYSTEM | 1 SET | |
| ＊ REWIND SECTION | |||
| ◎ REWIND MOTOR | A.C MOTOR 7.5 HP CONTROL BY TENTION INVERTER | 1SET | |
| ◎ REWIND SHAFT | OD12mm,18mm,26mm | 3 PCES | |
| ◎ REWIND TENTION SYSTEM | SURFACE TENSION CONTROL | 1 SET | |
| ◎ TRIM REMOVABLE UNIT | STRONG BLOWER A.C 2 HP | 1 SET | |
| ◎ TUCKING DEVICE | NON-STICK TYPE AUTOMATIC CONTROL | 1 SET | |
| ◎ MAINTENANCE KIT | TOOLS & OPERATION MANUAL | 1 SET | |
| >> ELECTRICIAL SECTION | |||
| > CONTROL SYSTEM | PLC PROGRAMMABLE UNIT | 1 SET | |
| > REWIND TENSION TYPE | TAPER TENSION AUTOMATIC CONTROL | 1 SET | |
| > CONTROL PANEL | TOUCH SCREEN (FOR SETTING: TENSION, LENGTH…ETC.) | 1 SET | |
| ＊ SLITTER KNIFE | |||
| ◎ SHEAR CUTTER | MALE KNIFE CARRIER ROLL105X60X20mm (MOVABLE TYPE) | 1 SET | |
| FEMALE KNIFE CARRIER ROLL 105X80X10mm (SPACER TYPE) | 1 SET | ||
| ◎ KNIFE SPACER SET | FEMALE KNIFE SPACER SET(customer appoints one kind) | 1 SET | |
| Dimension :2.13*1.74*1.40M G.W: 1800KG N.W:1500KG | |||
