| Place of Origin: | CHINA |
| Brand Name: | XMY |
| Model Number: | XMY004 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 25 WORK DAYS |
| Payment Terms: | T/T |
| ITEM | DESCRIPTION | |||

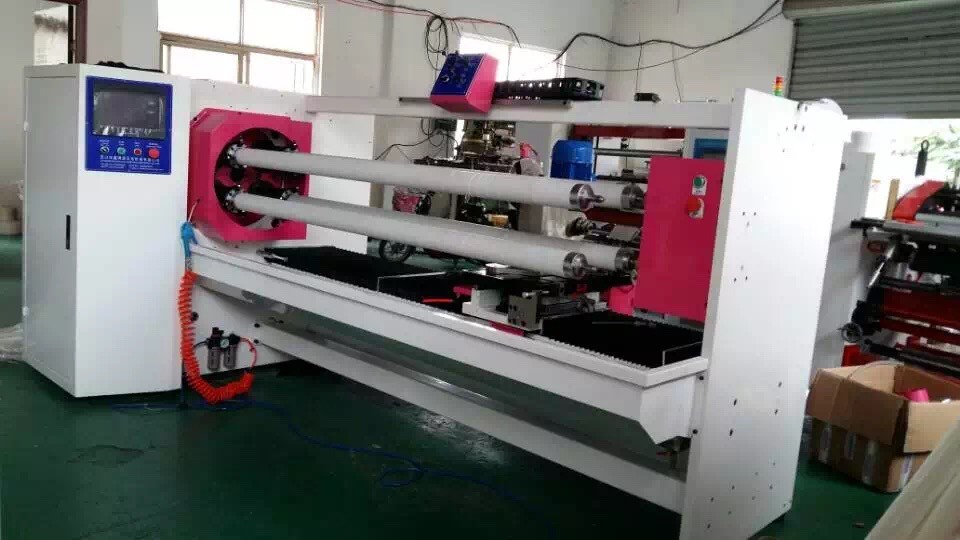

| MODEL: | XMY004 FOUR SHAFT TAPE CUTTING MACHINE | |||
| APPLICATION: | SUITABLE FOR VARIOUS ROLL STOCK MATERIAL SUCH AS BOPP MASKING ETC. | |||
| SPECIFICATIONS: |
|
|||
| EFFECTIVE WIDTH | 1300MM(MAX WIDTH1600MM) | |||
| CUTTING WIDTH | 2-1300MM | |||
| PAPER CORE I.D: | 3'' | |||
| CUTTING DIAMETER(MAX): | 180MM | |||
| POWER: | as the cutomer request | |||
| AIR SOURCE | 5KG(PREPARE BY USER) | |||
| STANDARD ACCESSORIES | ||||
| MAIN MOTOR | A.C5HP*4PINVERTER CONTROL | |||
| SIZE SETTING | SERVO MOTOR CONTROL | |||
| 20MENORY SETSFOR THE CUTTING WIDTH | ||||
| AUTOMATIC ERROR DETECITIVE SYSTEM | ||||
| SLIDING PART | IMPORT HIGH PRECISION BALL SCREW | |||
| IMPORT HIGH PRECISION LINER STEEL BALL SLIDE RAIL | ||||
| COOLING SYSTEM | AUTOMATIC WATER SUPPLY | |||
| CUTTING SHAFT | 3''INNER TENSION SHAFT | |||
| CIRCLUAR BLADE | ||||
| FREQUENCY INVERTER | ||||
| BLADE ANGLE ADJUSTMENT | SERVO MOTOR DRIVEN+/-8 DEGREE | |||
| BLADE MOTOR | AC2HP*4PINVERTER CONTROL | |||
| CUTTING GUARD | CONNECTED TYPE MOVABLE SMALL PLATE | |||
| SHAFT ENDING RACK | AUTOMATIC CONTROL | |||
| CUTTING SYSTEM | SERVO MOTOR CONTROL | |||
| BUTTON SWITCH | TAIWAN TEND,JAPAN OMRON | |||
| MAINTENCE KIT | TOOLS&INSTRUCTIONS | |||
| ELECTRICAL SECTION | ||||
| CONTROL SYSTEM | PLC-3 SERVO MOTOR STYSTEM | |||
| DISPLAY MODE | TOUCH PANEL SCREEN | |||
| FOB SHANGHAI | ||||
| OPTIONAL PARTS | EXTRA COST ON REQUEST | |||
| SAFETY COVER | CONNECTION COMPLETE GUARD | |||
| REMARKS | ||||
| TERMS OF PAYMENT: | BY TT,50%IN ADVANCE AS DEPOSIT,50% BE PAID BEFORE SHIPMENT | |||
| TIME OF SHIPMENT: | WITHIN 30 WORKING DAYS AFTER WE CONFIMED THE DEPOSIT | |||
| WARRANTY | ONE YEAR FROM THE DATE OF PURCHASE | |||
| PACKING | FUMIGATED WOODEN CASE | |||
| TIME OF VALIDITY | WITHIN 15 DAYS SINCE OFFERING DAY | |||
