| Place of Origin: | CHINA |
| Model Number: | DFJ-1700E |
| Minimum Order Quantity: | ONE SET |
|---|---|
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 45 WORK DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 10 SETS/MONTH |
| Prepress: | Servo Drive Rotary-blade Sheeting Machine,Rotary Sheeting Machine | Max Cutting Widt: | 1700MM |
|---|---|---|---|
| Max Unwinding Diameter: | 1800MM(71") | Thickness Range Of Paper: | 60-550g |
| Max Sheeting Speed: | 400cuts/min(pre-press), 200cuts/min(post-press) | Max Feeding Speed: | 400M/Min(pre-press), 200M/Min(post-press) |
| Cutting Length Range: | 450-1450mm | Cutting Precision: | The Cutting Length≤1200: ±0.3MM;The Cutting Length＞1200: ±0.1MM; Post-press: ±0.3MM |
| Slitting Format: | 1/2 Sheets | Max Piling Height: | 1300MM |
| Request For Air Source: | 0.8Mpa | Total Power: | 37KW |
| Voltage: | AC380V/220V, 50/60HZ | Gross Weight: | 14T |
| Overall Dimension(LxWxH): | 4200X1200X1900MM |

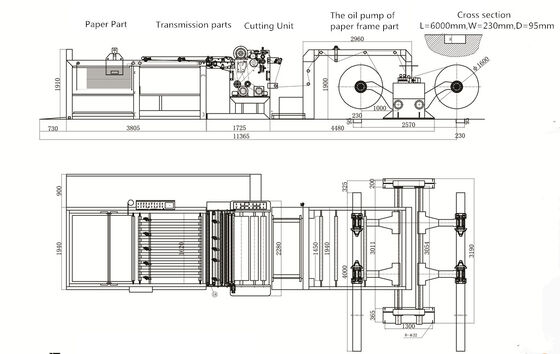

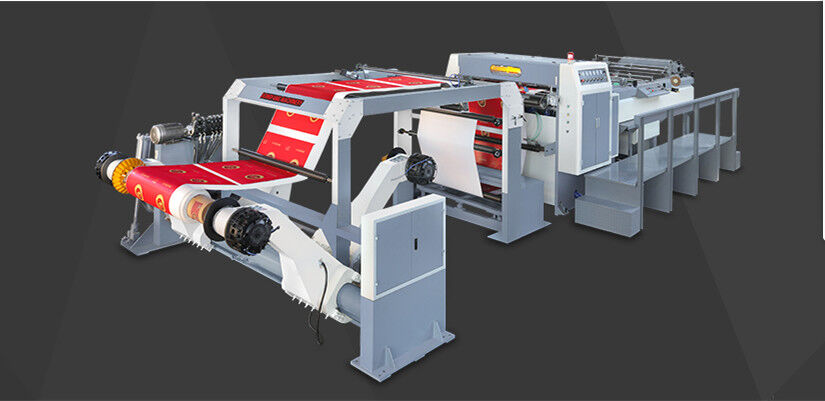

Servo Drive Rotary-blade Sheeting Machine,Rotary Sheeting Machine DFJ-1700E
DFJ-1700E servo drive rotary-blade paper sheeting machine is developed and innovated upon domestic and foreign advanced technology. The machine computer control system adopts servo motor and inverter (YASKAWA); the electrical system adopts Schneider and OMRON; the bearings adopt German FAG, and Germany imported tungsten steel cutter could be option: the cutter is faster, more stable and with higher precision; touch screen computer interface control, easy operation.
Specification of Servo Drive Rotary-blade Sheeting Machine ,Rotary Sheeting Machine DFJ-1700E
| Model | DFJ-1700E |
| Max Cutting Width | 1700MM |
| Max Unwinding Diameter | 1800MM(71") |
| Thickness Range of Paper | 60-550g |
| Cutting Method | The up knife cut reciprocally and the down knife is fixed |
| Max Sheeting Speed | 400cuts/min(pre-press), 200cuts/min(post-press) |
| Max Feeding Speed | 400M/Min(pre-press), 200M/Min(post-press) |
| Cutting Length Range | 450-1450mm |
| Cutting Precision | The cutting length≤1200: ±0.3MM;The cutting length＞1200: ±0.1MM; Post-press: ±0.3MM |
| Slitting Format | 1/2 sheets |
| Max Piling Height | 1300MM |
| Request for Air Source | 0.8Mpa |
| Total Power | 37KW |
| Voltage | AC380V/220V, 50/60HZ |
| Gross Weight | 14T |
| Overall Dimension(LxWxH) | 4200X1200X1900MM |
