| Place of Origin: | CHINA |
| Brand Name: | REX |
| Certification: | CE |
| Model Number: | DECO20 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 15-25 WORK DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 10 STES PER MONTH |
| Temperature Range Of The Dampening Solution: | 8-14 °C | Integrated Dampening Solution Tank: | 200L |
|---|---|---|---|
| Automatic Temperature Control With Cooling Capacity: | 15.5Kw | Conductivity Measurement: | 0~2000us |
| Refrigerant: | R22 Or R134a |

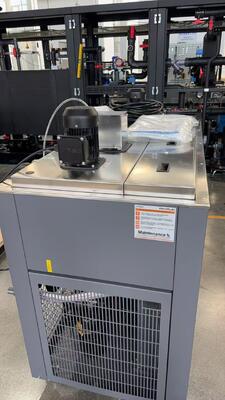

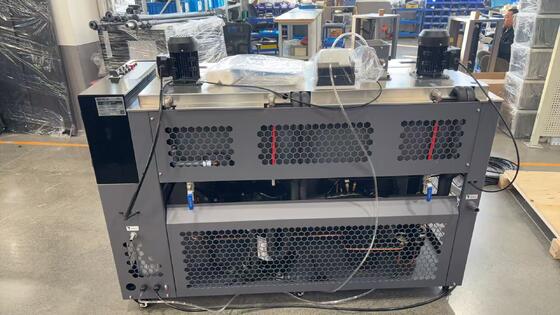

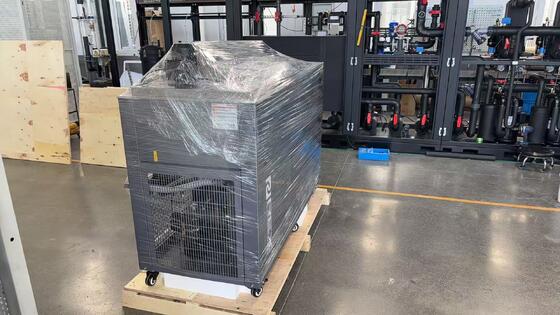

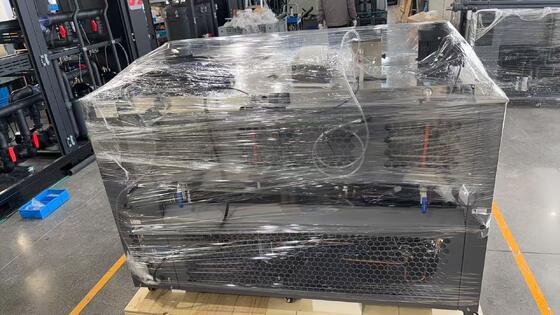

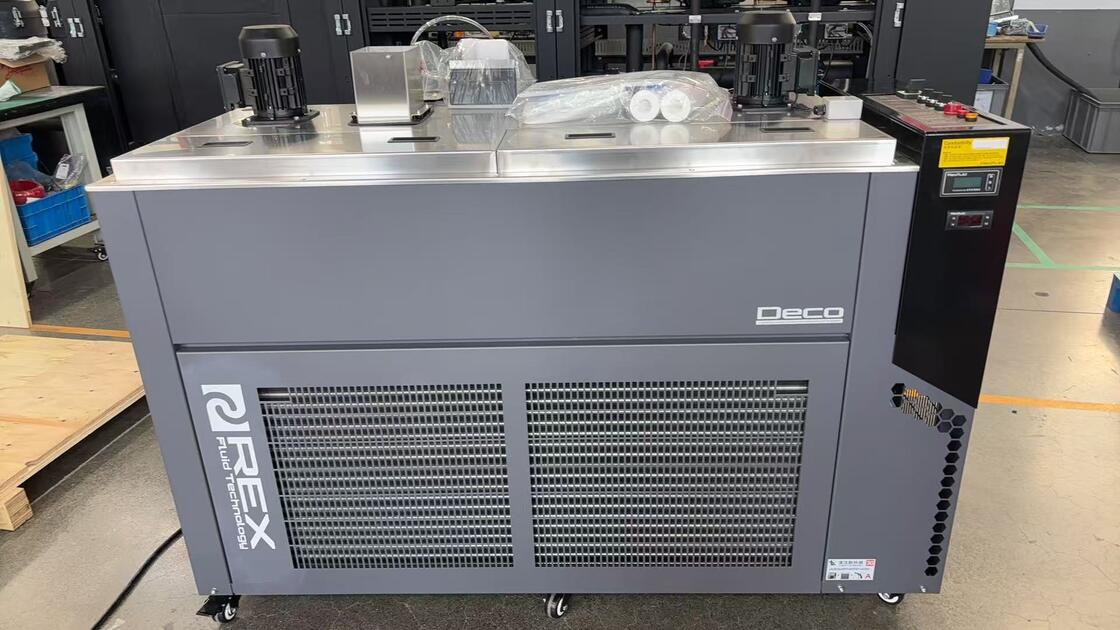

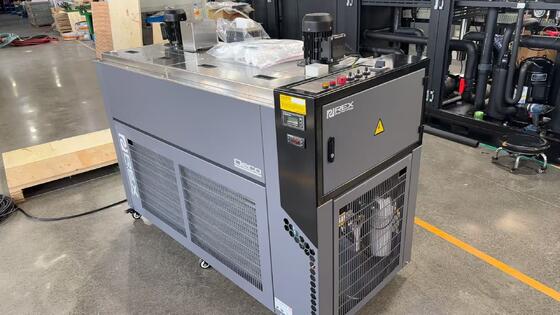

Dampening and Refrigeration System for Heidelberg,Komori, KBA,Roland, Akiyama, Mitsubishi, Goss,Solna sheet fed offset printing press machine
Technotrans Baldwin Balcontrol Dampening and Refrigeration System replacement for Heidelberg, Komori, KBA,Roland, Akiyama, Mitsubishi, Goss,Solna,TKS, Taiyo, Iwasaki , Castagnoli , Nebiolo, ect printing machine, Didde VIP web machine and label machine in print factory. It can replace Technotrans refrigeration beta C 170 L Central refrigeration, Chiller Technotrans beta.d , Dampening and Refrigeration System Technotrans Alpha Refrigeration & Recirculation Unit, Technotrans beta.f cooling, Baldwin, Royse, Royce cooler, Royce recirculation and refrigeration, Edelmann Cooling, Varn Kompac III Dampening refrigeration and Dampening and Refrigeration System, Eco Dampening and Refrigeration System, Accel, Alcolor etc.Recirculation & Refrigeration Dampening Device in print factory.
It can be used for the following power supply:
1. 380V 50/60 Hz 3 phase
2. 415V 50/60 Hz 3 phase
3. 220V 50/60 Hz single phase
A transformer is needed if the power supply is not in the above list.
1.Model:RL-550-AZ/AZP/B Technotrans Baldwin Balcontrol Dampening and Refrigeration System replacement with CE certificate
RL-550 Technotrans Baldwin Balcontrol Dampening and Refrigeration System replacement is used for following sheet fed offset printing press machine:
52cm 5 color
65cm 2 color
It is designed for 520mm, less than 6 color printing press machines
Specification:
| Tank Capacity | 55L |
| Unit Power | 3/PE AC 380V 50Hz 5.0A |
| Pump Power | 380V 50Hz 0.52A |
| Pump Capacity | 180W 46L/Min |
| Power | 380V 50 Hz 4.3A |
| Cooling Capacity | 2400W |
| Refrigerant | R22 or R134a |
| Range of Temperature setting | +7°C - +50°C |
| Operating temperature | +5°C - +36°C |
| Dampening solution additive control range | 1% - 5% |
| Dimension | 900X850X1480MM |
| Net Weight | 140Kg |
| Gross Weight | 150Kg |
| Product Model | RL-550AZ | RL-550AZP | RL-550B |
| Automatic Temperature Control | Yes | Yes | Yes |
| Automatic Alcohol Distribution | Yes | Yes | No |
| Fountain Solution percentage Additive Control | No | Yes | No |
| Intermediate Water Tank (Bubble Deduction) | Yes | Yes | Yes |
2.Model:Deco8 (Original RL-750-AZ/AZP/B) Technotrans Baldwin Balcontrol Dampening and Refrigeration System replacement with CE certificate
RL-750 Technotrans Baldwin Balcontrol Dampening and Refrigeration System replacement is used for following sheet fed offset printing press:
65cm 4 color
102cm 2 color
It is designed for 740mm, less than 4 color printing press machines.
Specification:
| Tank Capacity | 75L |
| Unit Power | 3/PE AC 380V 50Hz 5.0A |
| Pump Power | 380V 50Hz 0.68A |
| Pump Capacity | 250W 46L/Min |
| Power | 380V 50 Hz 4.3A |
| Cooling Capacity | 4000W |
| Refrigerant | R22 or R134a |
| Range of Temperature setting | +7°C - +50°C |
| Required Operating temperature | +5°C - +36°C |
| Dampening solution additive control range | 1% - 5% |
| Packages | 1000X870X1440MM, 630X440X330MM |
| Net Weigh | 190Kg |
| Gross Weight | 210Kg |
| Product Model | RL-750AZ | RL-750AZP | RL-750B |
| Automatic Temperature Control | Yes | Yes | Yes |
| Automatic Alcohol Distribution | Yes | Yes | No |
| Fountain Solution percentage Additive Control | No | Yes | No |
| Intermediate Water Tank (Bubble Deduction) |
Yes
|
Yes
|
Yes
|
3.Model:RL-1100-AZ/AZP/B/PB/PB2 Technotrans Baldwin Balcontrol Dampening and Refrigeration System replacement with CE certificate
RL-1100 Technotrans Baldwin Balcontrol Dampening and Refrigeration System replacement is used for following sheet fed offset printing press machine:
74cm 5 color
It is designed for 740mm, less than 5 color printing press machines.
Specification:
| Tank Capacity | 110L |
| Unit Power | 3/PE AC 380V 50Hz 5.5A |
| Pump Power | 380V 50Hz 0.68A |
| Pump Capacity | 250W 46L/Min |
| Power | 380V 50 Hz 4.8A |
| Cooling Capacity | 5000W |
| Refrigerant | R22 or R134a |
| Range of Temperature setting | +7°C - +50°C |
| Required Operating temperature | +5°C - +36°C |
| Dampening solution additive control range | 1% - 5% |
| Packages | 1100X890X1460MM,710X450X540MM |
| Net Weight | 250Kg |
| Gross Weight | 280Kg |
| Product Model | RL-1100AZ | RL-1100AZP | RL-1100B | RL-1100PB |
| Automatic Temperature Control |
Yes | Yes | Yes | Yes |
| Automatic Alcohol Distribution |
Yes | Yes | No | No |
| Fountain Solution percentage Additive Control |
No | Yes | No | Yes |
| Dual-Pumps system | No | No | No | No |
| Bubble Deduction Intermediate Tank |
Yes | Yes | Yes | Yes |
4. Model:Deco12 (Original RL-1500-AZ/AZP/PB/PB2) Technotrans Baldwin Balcontrol Dampening and Refrigeration System replacement with CE certificate
RL-1500 Technotrans Baldwin Balcontrol Dampening and Refrigeration System replacement is used for following sheet fed offset printing press machine:
102cm 4color
It is designed for 1020mm, less than 5 color printing machines, commercial web machine or single tower newspaper printing press machines.
Specification:
| Tank Capacity | 150L |
| Unit Power | 3/PE AC 380V 50Hz 6.3A |
| Pump Power | 380V 50Hz 0.68A |
| Pump Capacity | 250W 46L/Min |
| Power | 380V 50 Hz 5.6A |
| Cooling Capacity | 7000W |
| Refrigerant | R134a or R22 |
| Range of Temperature setting | +7°C - +50°C |
| Required Operating temperature | +5°C - +36°C |
| Dampening solution additive control range | 1% - 5% |
| Packages | 1200X850X1460MM, 750X600X750MM |
| Net Weight | 260KG |
| Gross Weight | 287KG |
| Product Model | RL-1500AZ | RL-1500AZP | RL-1500B for commercial web machine or single tower newspaper printing machines | RL-1500PB2 for commercial web machine or single tower newspaper printing machines |
| Automatic Temperature Control |
Yes | Yes | Yes | Yes |
| Automatic Alcohol Distribution |
Yes | Yes | No | No |
| Fountain Solution percentage Additive Control |
No | Yes | Yes | Yes |
| Dual-Pumps system | No | No | No | Yes |
| Bubble Deduction Intermediate Tank |
Yes | Yes | Yes | Yes |
5. Model:Deco15 (Original RL-1800-AZ/AZP/PB2) Technotrans Baldwin Balcontrol Dampening and Refrigeration System replacement with CE certificate
RL-1800 Technotrans Baldwin Balcontrol Dampening and Refrigeration System replacement is used for following sheet fed offset printing press machine:
130cm 4-6color
It is designed for large sheet fed offset press, commercial web machine or double towers newspaper printing press machines.
| Tank Capacity | 180L |
| Unit Power | 3/PE AC 380V 50Hz 14.4A |
| Pump Power | 380V 50Hz 0.68A |
| Pump Capacity | 250W 46L/Min |
| Power | 380V 50 Hz 13A |
| Cooling Capacity | 12000W |
| Refrigerant | R22 or R134a |
| Range of Temperature setting | +7°C - +50°C |
| Required Operating temperature | +5°C - +36°C |
| Dampening solution additive control range | 1% - 5% |
| Packages | 1610X960X1470MM, 950X690X760MM |
| Net Weight | 350Kg |
| Gross Weight | 385Kg |
| Product Model | RL-1800AZ | RL-1800AZP | RL-1800PB2 for commercial web machine or double towers newspaper printing machines |
| Automatic Temperature Control |
Yes | Yes | Yes |
| Automatic Alcohol Distribution |
Yes
|
Yes
|
No
|
| Fountain Solution percentage Additive Control |
No | Yes | Yes |
| Dual-Pumps system | No | No | Yes |
| Bubble Deduction Intermediate Tank |
Yes | Yes | optional |
| Temperature range of the dampening solution | 8-14 °C |
| Integrated dampening solution tank | 200L |
| Automatic temperature control with cooling capacity | 15.5Kw |
| Defined mechanical, electrical and fluid interfaces | 380V 3Phase 50HZ |
| dampening solution automatic additive control | Yes |
| Conductivity measurement | 0~2000us |
| PH measurement | Yes |
| Basic dampening solution filtration bag; | Yes |
| Intermediate tank with pump unit | Yes |
| Range of Temperature setting | 7°C～+50°C |
| Required Operating temperature | +5°C～+36°C |
| Dampening solution additive control range | 1%~5% |
| Refrigerant | R22 or R134a |
| Pump Capacity | 1.1KW |
| Water quality fresh water | 8-14°Dh |
| Water temperature fresh water | Max. 25°C |
| Required Industrial standard | JB/T 11123-2010 |
| Qualified Quality system | ISO9001:2008 GB/T 19001-2008 |
| Color of the unit | Standard grey |
| Documents | English |
| dampening solution circulation system, without ink roller cooling. |
| cooling capacity:13.7kw |
| dampening solution circulation flow:90liters/min |
| automatic IPA control unit; |
| automatic dampening solution feeding by percentage; |
| conductivity measurement; |
| PH measurement; |
| intermediate tank with pump unit; |
| dimension:w2800mm*d900mm*h1450mm |
| Net Weight: 450KG |
| Gross Weight: 500KG |
8.Dampening and Refrigeration System Deco30 NP for GOSS Community 4 towers (16 color)
| Items | Value we are offering |
| General requirement | |
| completely pre-assembled, wired and tested | |
| mechanical, electricaland fluid interfaces | 380v 50Hz 3PH |
| Qualified Quality system | ISO9001:2008 GB/T 19001-2008 |
| Environment | |
| Operating temperature | +10~45℃ |
| Temperature for transport | Up to 65°C |
| Operating relative humidity (not condensing) | 30- 95% |
| Geographic height | Less than 3000m |
| Performance data | |
| Temperature of dampening solution | 10.5℃ |
| Controller and display | Rex8810 |
| Water filling | Automatic |
| IPA control | Optional |
| Dampening solution control | Automatic 0~5% |
| Conductivity | 0~2000us |
| Refrigerant | R22 , R134a |
| Tank Volume | ≥220 Liters |
| Flow Rate | ≥105 Liters/m |
| Feeding pressure | ≥0.5Bar |
| Cooling capacity | ≥17100kcal/h |
| Water quality fresh water | 8dH |
| Water temperature fresh water | Max. 25°C |
| Dimension | L2250×D950×H1990 |
| Weight | 350kg |
| completely pre-assembled, wired and tested | Cooling water and power are provided by user |
| mechanical, electrical and fluid interfaces | 380v 50Hz 3PH; Fluid: 1.5" water feeding and return interface |
| Qualified Quality system | ISO9001:2008 GB/T 19001-2008 |
| Environment | |
| Operating temperature | +10~45℃ |
| Temperature for transport | Up to 65°C |
| Operating relative humidity (not condensing) | 30% -95% |
| Geographic height | Less than 3000m |
| Performance data | |
| Temperature of dampening solution | 10.5℃ |
| Controller and display | Rex8810 standard controller and condition alarm |
| Water filling | Automatic |
| IPA control | Automatic 3~15% |
| Dampening solution control | Automatic 0~5% |
| Conductivity | 0~2000us |
| Refrigerant | R22 , R134a |
| Tank Volume | ≥300 Liters |
| Flow Rate | ≥133Liters/m |
| Feeding pressure | ≥0.5Bar |
| Cooling capacity | ≥30KW |
| Water quality fresh water | 8dH |
| Water temperature fresh water | Max. 25°C |
| Dimension | |
| Weight |
