| Place of Origin: | China |
| Brand Name: | XMY |
| Model Number: | XMY001 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | wooden case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 10 set/Month |
| COLOR: | WHITE |
|---|

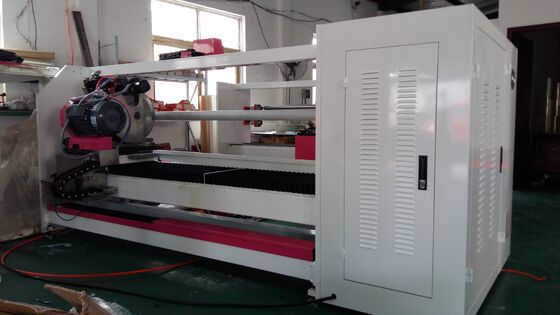

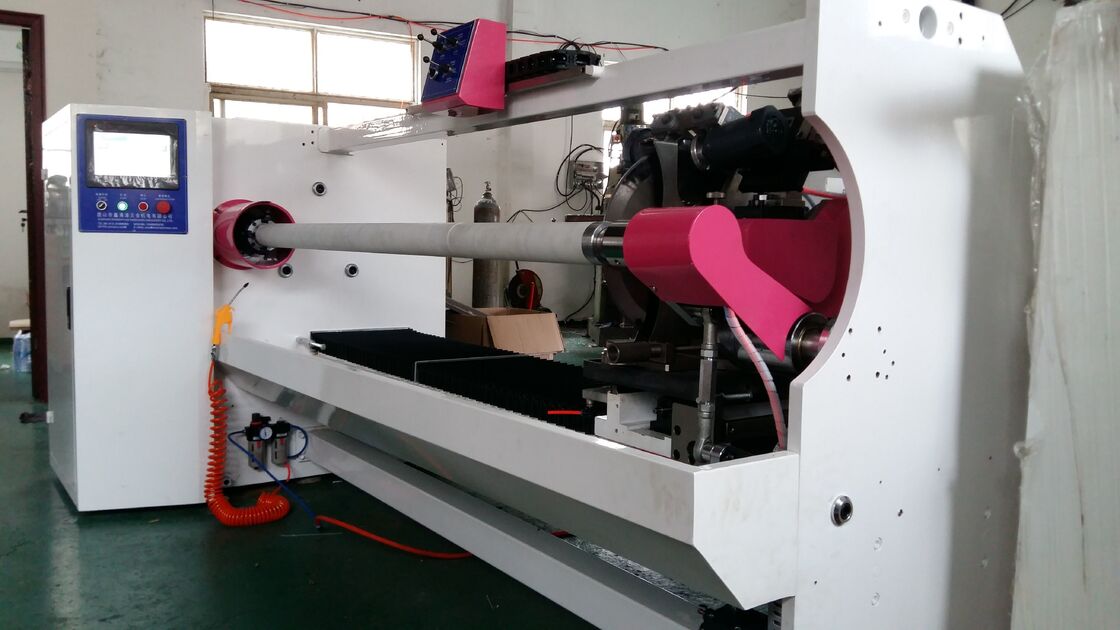

AUTOMATIC CUTTING MACHINE SINGLE SHAFT FOR VARIOUS ROLL STOCK MATERIAL SUCH AS BOPP,DOUBLE SIDED ETC.
| ITEM | DESCRIPTION | QTY | AMOUNT | |
| MODEL: XMY001 | AUTOMATIC CUTTING MACHINE SINGLE SHAFT | |||
| APPLICATION: | SUITABLE FOR VARIOUS ROLL STOCK MATERIAL SUCH AS BOPP,DOUBLE SIDED ETC. | |||
| SPECIFICATIONS: | ||||
| EFFECTIVE WIDTH | 1620MM | |||
| CUTTING WIDTH | 3-1600MM | |||
| PAPER CORE I.D: | 2'',3'' | |||
| MAX CUTTING DIAMETER: | 400MM | |||
| POWER: | AS CLIENT REQUEST | |||
| AIR SOURCE | 5KG(PREPARE BY USER) | |||
| PACKING SIZE | 3.16*1.76*1.75M | |||
| N.W/G.W: | 1500KG/2000KG | |||
| STANDARD ACCESSORIES | ||||
| MAIN MOTOR | A.C3HP*6PINVERTER CONTROL | 1SET | TAIWAN TECO | |
| SIZE SETTING | SERVO MOTOR 750W CONTROL | 1SET | (MITSUBISHI MR-J2S) | |
| 20MENORY SETS FOR THE CUTTING WIDTH | 1SET | |||
| AUTOMATIC ERROR DETECITIVE SYSTEM | 1SET | |||
| SLIDING PART | IMPORT HIGH PRECISION BALL SCREW | 3PCS | (PMI IN TAIWAN) | |
| IMPORT HIGH PRECISION LINER STEEL BALL SLIDE RAIL | 4PCS | (PMI IN TAIWAN) | ||
| COOLING SYSTEM | AUTOMATIC WATER SUPPLY | 1SET | ||
| CUTTING SHAFT | FOR PAPER CORE I.D. 3” (76.2mm) 2''(50.8mm) | 1PCS | ||
| PE SHAFT | 3''AND 2'' | 10PC | ||
| CIRCLUAR BLADE | KOREA/JAPAN | 1PCS | ||
| FREQUENCY INVERTER | MITSUBISHI | 2SET | ||
| BLADE ANGLE ADJUSTMENT | SERVO MOTOR 100W DRIVEN+/-8 DEGREE | 1SET | (MITSUBISH MR-J2S) | |
| BLADE MOTOR | AC1HP*6PINVERTER CONTROL | 1SET | ||
| CUTTING GUARD | CONNECTED TYPE MOVABLE SMALL PLATE | 1SET | ||
| SHAFT ENDING RACK | AUTOMATIC CONTROL | 1SET | ||
| CUTTING SYSTEM | SERVO MOTOR 450W FOR KNIFE FEEDING | 1SET | (MITSUBISH MR-J2S) | |
| BUTTON SWITCH | TAIWAN TEND,JAPAN OMRON | 1SET | ||
| MAINTENCE KIT | TOOLS&INSTRUCTIONS | 1SET | ||
| ELECTRICAL SECTION | ||||
| CONTROL SYSTEM | PLC-3 MITSUBISHI SERVO MOTOR STYSTEM | |||
| DISPLAY MODE | TOUCH PANEL SCREEN10.2" | JAPAN FUJI | ||
