| Place of Origin: | China |
| Brand Name: | XMY |
| Model Number: | XMY004 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | wooden case |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T |
| Supply Ability: | 10 set/month |

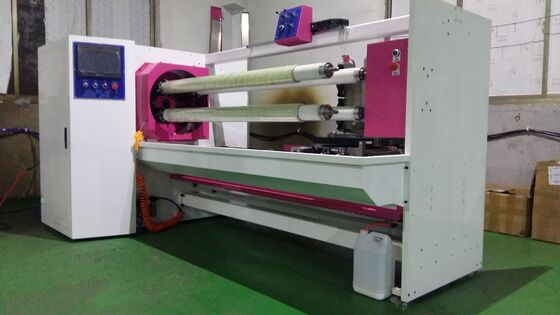

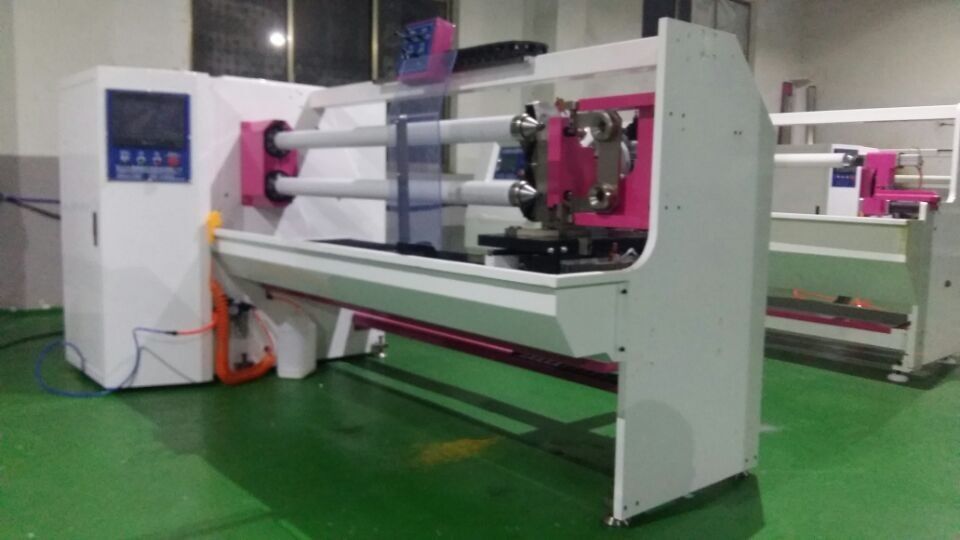

FOUR SHAFT TAPE CUTTING MACHINE FOR VARIOUS ROLL STOCK MATERIAL SUCH AS BOPP MASKING ETC.
| ITEM | DESCRIPTION | QTY | AMOUNT | |
| MODEL: | XMY004 FOUR SHAFT TAPE CUTTING MACHINE | |||
| APPLICATION: | SUITABLE FOR VARIOUS ROLL STOCK MATERIAL SUCH AS BOPP MASKING ETC. | |||
| SPECIFICATIONS: | ||||
| EFFECTIVE WIDTH | 1300MM(MAX WIDTH1600MM) | |||
| CUTTING WIDTH | 2-1300MM | |||
| PAPER CORE I.D: | 3'' | |||
| CUTTING DIAMETER(MAX): | 180MM | |||
| POWER: | as the cutomer request | |||
| AIR SOURCE | 5KG(PREPARE BY USER) | |||
| STANDARD ACCESSORIES | ||||
| MAIN MOTOR | A.C5HP*4PINVERTER CONTROL | 1SET | ||
| SIZE SETTING | SERVO MOTOR CONTROL | 1SET | ||
| 20MENORY SETSFOR THE CUTTING WIDTH | 1SET | |||
| AUTOMATIC ERROR DETECITIVE SYSTEM | 1SET | |||
| SLIDING PART | IMPORT HIGH PRECISION BALL SCREW | 3PCS | ||
| IMPORT HIGH PRECISION LINER STEEL BALL SLIDE RAIL | 4PCS | |||
| COOLING SYSTEM | AUTOMATIC WATER SUPPLY | 1SET | ||
| CUTTING SHAFT | 3''INNER TENSION SHAFT | 1PC | ||
| CIRCLUAR BLADE | 1PC | |||
| FREQUENCY INVERTER | 2SET | |||
| BLADE ANGLE ADJUSTMENT | SERVO MOTOR DRIVEN+/-8 DEGREE | 1SET | ||
| BLADE MOTOR | AC2HP*4PINVERTER CONTROL | 1SET | ||
| CUTTING GUARD | CONNECTED TYPE MOVABLE SMALL PLATE | 1SET | ||
| SHAFT ENDING RACK | AUTOMATIC CONTROL | 1SET | ||
| CUTTING SYSTEM | SERVO MOTOR CONTROL | 1SET | ||
| BUTTON SWITCH | TAIWAN TEND,JAPAN OMRON | 1SET | ||
| MAINTENCE KIT | TOOLS&INSTRUCTIONS | 1SET | ||
| ELECTRICAL SECTION | ||||
| CONTROL SYSTEM | PLC-3 SERVO MOTOR STYSTEM | |||
| DISPLAY MODE | TOUCH PANEL SCREEN | |||
| FOB SHANGHAI | ||||
| OPTIONAL PARTS | EXTRA COST ON REQUEST | |||
| SAFETY COVER | CONNECTION COMPLETE GUARD | |||
